KEY FEATURES

• Non-intrusive probe
• Advanced I/Q demodulation
• Automatic decoding: no need to preselect the protocol
• Precise analog spy (25pts / per clock period)
• API for various test bench usages
• Real-time triggers, 3 digital I/Os
• Transaction advanced analyzer (timing, application)
• Data logger
• Supports all protocols and speeds natively
• The acquisitions of the ProxiSPY Quest and the ContactLAB can be synchronized

COMMUNICATION PROTOCOLS

• USB
• General-purpose I/O

SUPPORTED PROTOCOLS

• ISO 14443 A/B/B’ (Calypso Innovatron) up to 6.8Mbps (VHBR ASK),
• ISO14443 Analyzer handles ISO14443-4 features:
  • Support frames with framing options
  • Support frames with FEC encoding
• ISO 15693,
• ISO18092/ECMA340 (NFC IP-1), ISO21481 / ECMA352 (NFC IP-2)
• JISX 6319 FeliCa
• Analysis of Apple VAS frames
• Analysis of Mifare Classic and Picopass protocols

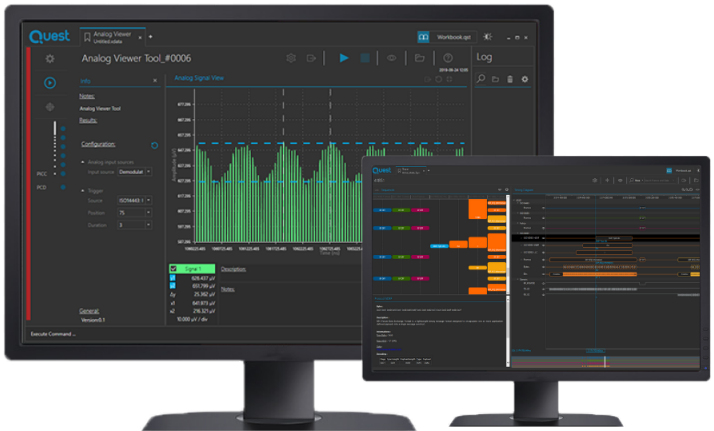

QUEST TOOLS FOR SPYING

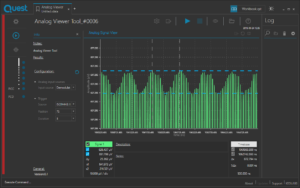

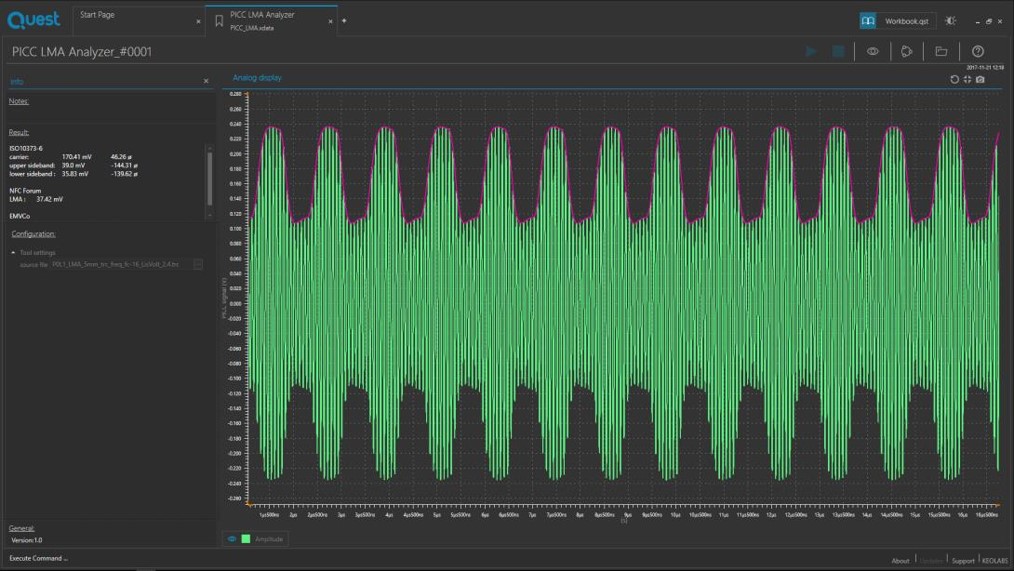

Analog Viewer

• Oscilloscope-like display of easily captured analog frames.

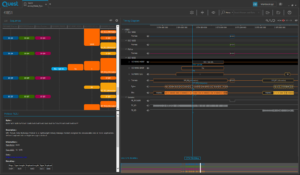

Digital Viewer

Advanced protocol analyzer enriched with dynamic protocol documentation:

• List and sequence view
• Statistical analysis
• Protocol warning/error easily identified
• Custom annotation
• Filtering and export features

SPY LICENSE OPTION

• SC-ProxiSPY Quest: ProxiSPY Quest Contactless analyzer including all options ISO14443/NFC digital and analog level.

OTHER ACCESSORIES

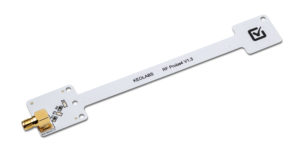

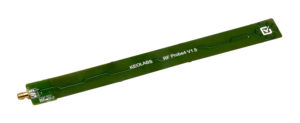

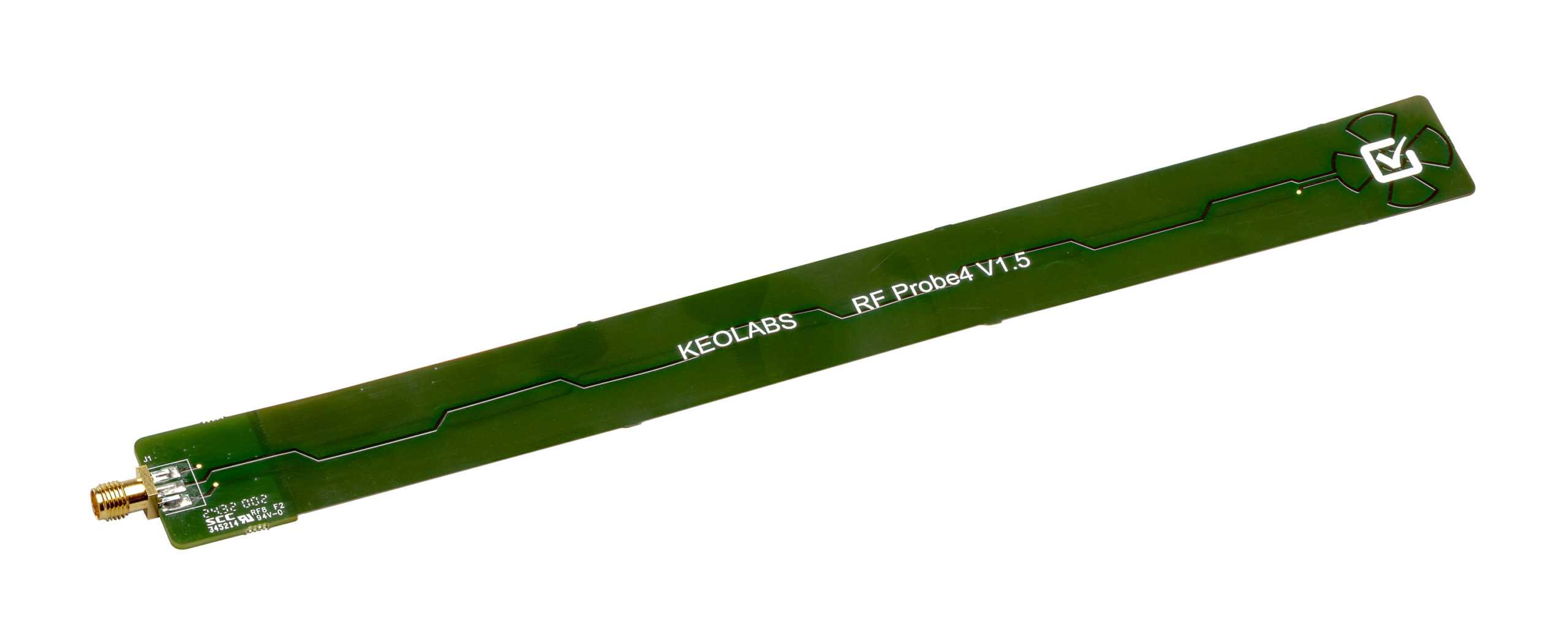

• SC-RF Probe 4 V1.3

Specifically adapted for use with mobile phones and other non-standard form factors.

• 100cm SMA/SMA Platform Inter-connection Cable

Cable for connection of NFC probes for ProxiSPY

• 50cm SMA/SMA Platform Inter-connection Cable

Cable for inter-connection of KEOLABS’ hardware plarforms
